Parkview project.

Proposed residential home remodel. Worked with client on the conceptual design from proposed floor plans, layouts, and drafting construction documents. They wanted to do a full gut and rebuild. I made a 3D digital model in AutoCAD to assist in the design and layout of the house.

Site Civil Survey
28 parkview proposed 1st fl.jpg

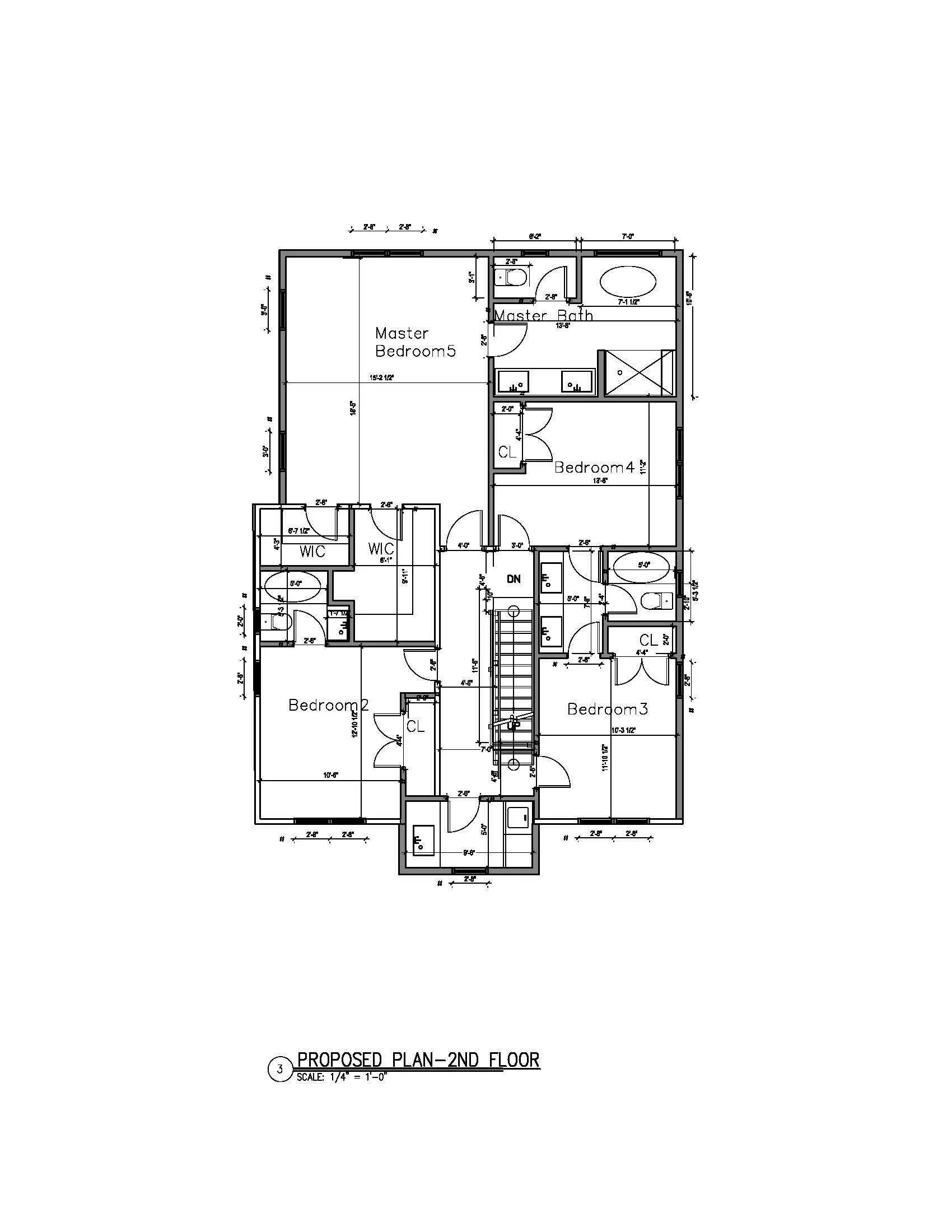

28 parkview proposed 2nd fl.jpg
28 parkview proposed basement fl.jpg

3D Model view from the back of house

3D Model view from front of the house
